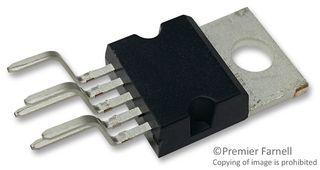

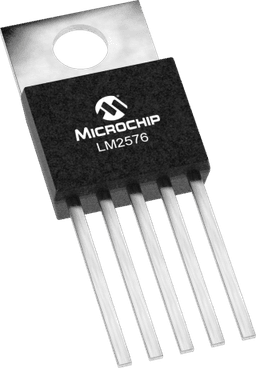

LM2576-5.0WT

Manufacturer

Microchip

Description

LM2576 Series 40 V 52 kHz 3 A Simple Step-Down Buck Regulator - TO-220-5

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

Efficiency

Frequency

Height

Lead Free

Length

Lifecycle Status

Max Duty Cycle

Max Input Voltage

Max Junction Temperature (Tj)

Max Operating Temperature

Max Output Current

Max Supply Voltage

Min Input Voltage

Min Operating Temperature

Min Output Voltage

Min Supply Voltage

Mount

Nominal Input Voltage

Nominal Output Voltage

Nominal Supply Current

Number of Channels

Number of Outputs

Number of Pins

Output Configuration

Output Current

Output Type

Output Voltage

Packaging

Radiation Hardening

REACH SVHC

RoHS

Schedule B

Switching Frequency

Synchronous Rectifier

Topology

Width

Description

TO-220-5

82 %

52 kHz

15.7226 mm

Lead Free

10.67 mm

Production (Last Updated: 4 years ago)

98 %

40 V

125 °C

125 °C

3 A

40 V

4 V

-40 °C

5 V

4 V

Through Hole

40 V

5 V

5 mA

1

1

5

Positive

3 A

Fixed

5 V

Cut Tape

No

No SVHC

Compliant

8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000

52 kHz

No

Buck

4.83 mm

In Stock


Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹186.73

Total Price

₹186.73


delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

186.73

186.73

10

186.64

1866.43

25

155.72

3892.92

50

155.72

7785.84

100

141.85

14185.41
