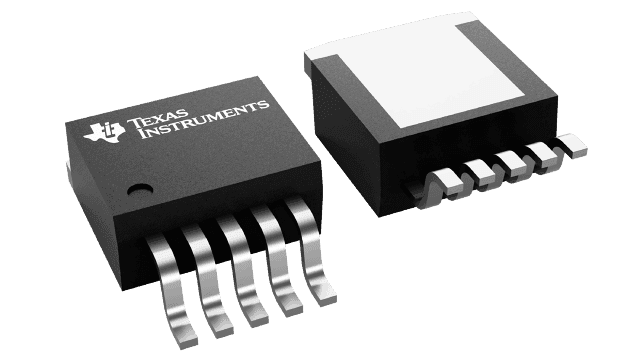

LM2941CT/NOPB

Manufacturer

Texas Instruments

Description

LDO Regulator Pos 5V to 20V 1A 5-Pin (5+Tab) TO-220 Rail

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

Dropout Voltage

Height

Lead Free

Length

Lifecycle Status

Manufacturer Lifecycle Status

Max Input Voltage

Max Operating Temperature

Max Output Current

Max Output Voltage

Min Input Voltage

Min Operating Temperature

Min Output Voltage

Mount

Number of Channels

Number of Outputs

Number of Pins

Output Current

Output Type

Output Voltage

Polarity

Quiescent Current

Radiation Hardening

REACH SVHC

Reference Voltage

RoHS

Schedule B

Thickness

Weight

Width

Description

TO-220

500 mV

4.7 mm

Lead Free

10.16 mm

Production (Last Updated: 1 day ago)

ACTIVE (Last Updated: 1 day ago)

26 V

125 °C

1 A

20 V

-15 V

0 °C

5 V

Through Hole

1

1

5

1 A

Adjustable

20 V

Positive

15 mA

No

No SVHC

1.313 V

Compliant

8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000

4.58 mm

4.535924 g

8.51 mm

In Stock


Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹157.39

Total Price

₹157.39


delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

157.39

157.39

10

114.80

1147.96

25

114.83

2870.78

50

98.95

4947.51

100

90.87

9086.74

500

86.94

43471.65

1000

83.63

83631.93
