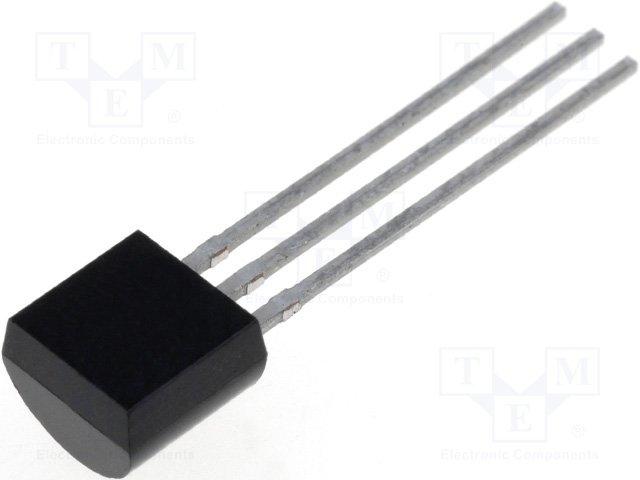

LM317LZ-AP

Manufacturer

STMicroelectronics

Description

LM317 Series 100 mA 1.2 to 37 V Adjustable Positive Voltage Regulator - TO-92

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

China RoHS

Lead Free

Lifecycle Status

Max Input Voltage

Max Junction Temperature (Tj)

Max Operating Temperature

Max Output Current

Min Input Voltage

Min Operating Temperature

Min Output Voltage

Mount

Number of Channels

Number of Circuits

Number of Outputs

Number of Pins

Number of Regulators

Number of Terminals

Output Current

Output Type

Output Voltage

Packaging

Polarity

Power Supply Rejection Ratio (PSRR)

Radiation Hardening

REACH SVHC

Reference Voltage

RoHS

Schedule B

Terminal Pitch

Description

TO-92

Compliant

Lead Free

Production (Last Updated: 7 months ago)

40 V

125 °C

125 °C

100 mA

4.2 V

0 °C

1.2 V

Through Hole

1

1

1

3

1

3

100 mA

Adjustable

37 V

Cut Tape

Positive

80 dB

No

Yes

1.3 V

Compliant

8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000

1.27 mm

In Stock

Quantity

MOQ : 2

Minimum Qty : 2

decrement quantity
increment quantity

Per Unit Price

₹60.37

Total Price

₹120.74

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹119.86

₹119.86

10

₹38.25

₹382.48

25

₹38.28

₹957.09

50

₹38.27

₹1913.30

100

₹31.08

₹3108.34

500

₹29.59

₹14793.50

1000

₹26.64

₹26638.17
