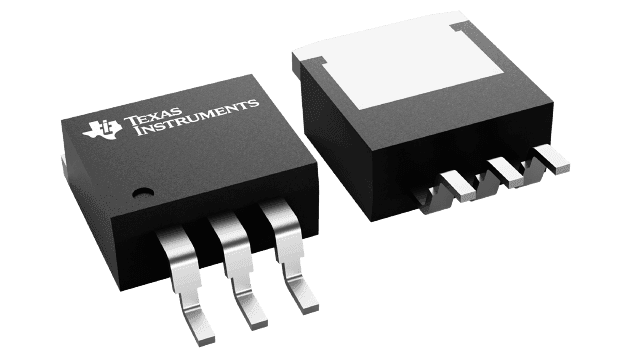

LM3940ISX-3.3/NOPB
Manufacturer
Texas Instruments
Description
1-A, low-dropout voltage regulator for 5-V to 3.3-V conversion 3-DDPAK/TO-263 -40 to 125
Datasheet
DownloadProduct Attributes
Type
Accuracy
Case/Package
Contact Plating
Dropout Voltage
Height
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Output Voltage
Number of Outputs
Number of Pins
Number of Regulators
Output Current
Output Type
Output Voltage
Polarity
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Thickness
Weight
Width
Description
2.5 %
TO-263
Tin
500 mV
4.83 mm
10.18 mm
Production (Last Updated: 2 months ago)
ACTIVE (Last Updated: 2 months ago)
7.5 V
125 °C
125 °C
1 A
5.5 V
4.5 V
-40 °C
4.5 V
Surface Mount
3.3 V
1
3
1
1 A
Fixed
3.3 V
Positive
15 mA
No
No
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
4.44 mm
113.398093 g
8.41 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹202.48
Total Price
₹202.48
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹202.48
₹202.48
10
₹148.99
₹1489.88
25
₹135.71
₹3392.68
50
₹135.71
₹6785.35
100
₹121.02
₹12102.05
500
₹109.80
₹54899.09
1000
₹104.57
₹104572.57
