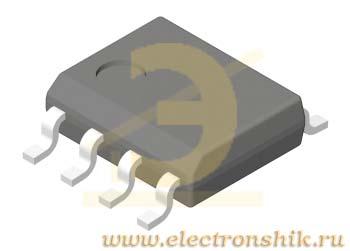

LM555CMX
Manufacturer
onsemi
Description
LM555 Series 16 V Monolithic Timing Circuit General Purpose Single Timer - SOP-8
Datasheet
DownloadProduct Attributes
Type
Case/Package
Current Rating
Frequency
Height
High Level Output Current
Lead Free
Lifecycle Status
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Pins
Number of Timers/Counters
Operating Supply Current
Packaging
Power Dissipation
Radiation Hardening
REACH SVHC
RoHS
Weight
Description
SOIC
3 mA
100 kHz
1.75 mm
-200 mA
Lead Free
Obsolete (Last Updated: 4 years ago)
50 mA
OBSOLETE (Last Updated: 4 years ago)
70 °C
600 mW
16 V
0 °C
4.5 V
Surface Mount
7.5 mA
8
1
7.5 mA
Cut Tape
600 mW
No
No
Compliant
230.4 mg
Out of Stock
Ships in 7-10 days
