LMV324BG-13
Manufacturer
Diodes Inc.
Description

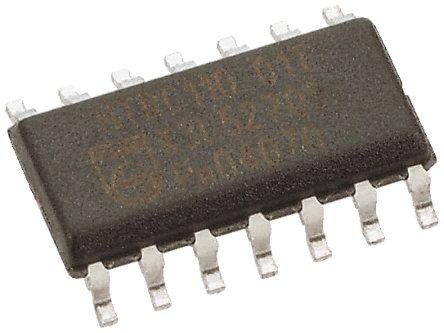

LMV324 Series 5.5 V 1MHz Rail-to-Rail Output Operational Amplifier - SOP-14
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Common Mode Rejection Ratio
Gain Bandwidth Product
Height
Height - Seated (Max)
Input Bias Current
Input Offset Voltage (Vos)
Lead Free
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Current
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Channels
Number of Circuits
Number of Elements
Number of Pins
Number of Terminals
Operating Supply Current
Operating Supply Voltage
Output Current per Channel
Packaging
Power Supply Rejection Ratio (PSRR)
Radiation Hardening
REACH SVHC
RoHS
Slew Rate
Supply Type
Terminal Pitch
Unity Gain Bandwidth Product
Voltage Gain
Weight
Width
Description
SOP
Compliant
50 dB
1 MHz
1.45 mm
1.73 mm
250 nA
9 mV
Lead Free
8.635 mm
Production (Last Updated: 7 months ago)
50 kHz
85 °C
1.1 mA
5.5 V
-40 °C
2.7 V
Surface Mount
4
4
4
14
14
340 µA
2.7 V
90 mA
Tape and Reel
50 dB
No
Yes
Compliant
1 V/µs
Single
1.27 mm
1 MHz
100 dB
240.999296 mg
3.895 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹57.80
Total Price
₹115.60
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹115.60
₹115.60
10
₹42.86
₹428.59
25
₹42.82
₹1070.60
50
₹42.82
₹2141.19
100
₹30.35
₹3034.84
500
₹27.40
₹13700.79
1000
₹22.64
₹22644.37
