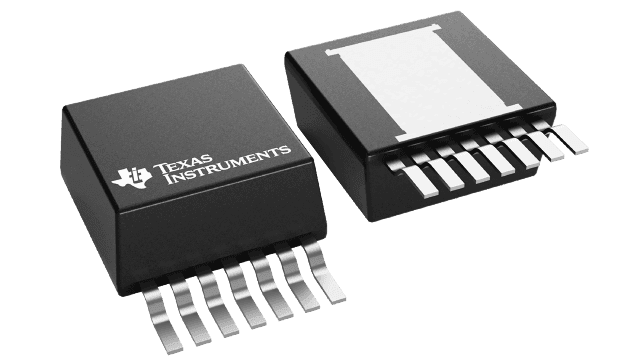

LMZ12003TZE-ADJ/NOPB
Manufacturer
Texas Instruments
Description
3A SIMPLE SWITCHER Power Module with 20V Maximum Input Voltage 7-TO-PMOD -40 to 125
Datasheet
DownloadProduct Attributes
Type
Depth
Efficiency
Features
Height
Isolation
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Power Dissipation
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Mount
Number of Outputs
Number of Pins
Output Current
Output Type
Output Voltage
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Switching Frequency
Thickness
Topology
Voltage - Output 1
Width
Description
9.85 mm
92 %
UVLO
4.8 mm
Non-Isolated
Lead Free
10.16 mm
Production (Last Updated: 2 weeks ago)
ACTIVE (Last Updated: 2 weeks ago)
20 V
125 °C
3 A
6 V
18 W
4.5 V
-40 °C
800 mV
Surface Mount
1
7
3 A
Adjustable
6 V
1 mA
No
No
Compliant
8542390000, 8542390000|8542390000
1 MHz
4.57 mm
Buck
6 V
9.85 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹1033.77
Total Price
₹1033.77
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1033.77
₹1033.77
10
₹1016.93
₹10169.32
25
₹1016.91
₹25422.86
50
₹980.98
₹49048.75
100
₹955.61
₹95561.12
500
₹941.86
₹470929.27
1000
₹923.90
₹923899.40
