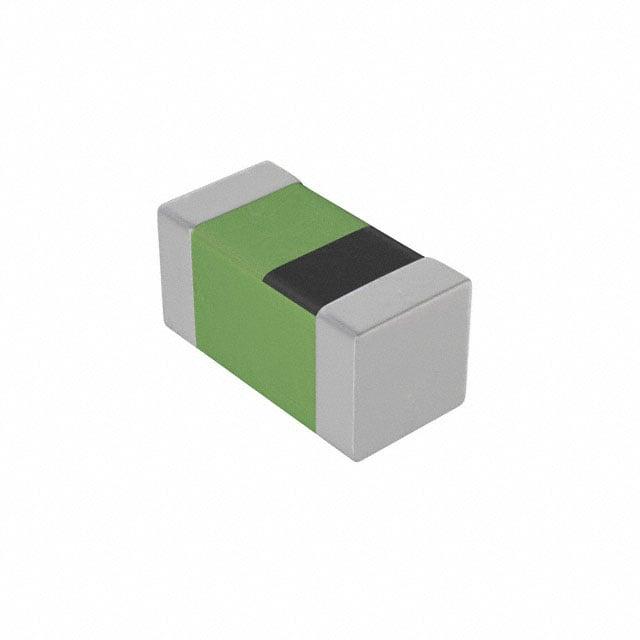

LQG15HZ22NH02D
Manufacturer
Murata
Description
22 nH Unshielded Multilayer Inductor 350 mA 420mOhm Max 0402 (1005 Metric)
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Multilayer
Air
22 nH
±3%
350 mA
Unshielded
420mOhm Max
1.9GHz
AEC-Q200
-55°C ~ 125°C
100 MHz
Surface Mount
0402 (1005 Metric)
0402 (1005 Metric)
0.039" L x 0.020" W (1.00mm x 0.50mm)
0.022" (0.55mm)
₹12.74
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹10.13
₹101.25
25
₹5.99
₹149.74
50
₹5.99
₹299.48
100
₹5.60
₹560.28
500
₹4.98
₹2487.90
1000
₹4.71
₹4708.98
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Multilayer
Air
22 nH
±3%
350 mA
Unshielded
420mOhm Max
1.9GHz
AEC-Q200
-55°C ~ 125°C
100 MHz
Surface Mount
0402 (1005 Metric)
0402 (1005 Metric)
0.039" L x 0.020" W (1.00mm x 0.50mm)
0.022" (0.55mm)
