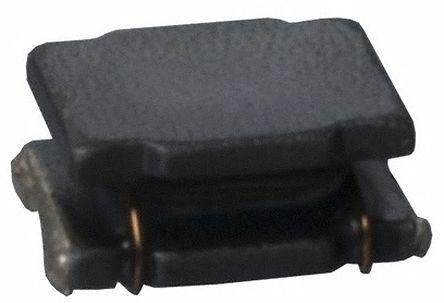

LQH5BPN1R5NT0L
Manufacturer
Murata
Description
Inductor Power Chip Shielded Wirewound 1.5uH 30% 100KHz Ferrite 3A 0.0288Ohm DCR 2020 T/R
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Packaging
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Saturation Current
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Width
Description
85 °C
2020
2020
5050
Wirewound
Ferrite
3 A
3 A
28.8 mΩ
5.2 mm
2.2 mm
2.1844 mm
1.5 µH
30 %
5.0038 mm
Production (Last Updated: 4 years ago)
IN PRODUCTION (Last Updated: 4 years ago)
5 A
125 °C
Not
-40 °C
Surface Mount
Cut Tape
No
No SVHC
28.8 mΩ
3 A
Compliant
5 A
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
70 MHz
28.8 mΩ
Shielded
SMD/SMT
100 kHz
30 %
5.0038 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹36.46
Total Price
₹109.37
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹109.37
₹109.37
10
₹27.42
₹274.20
25
₹27.42
₹685.50
50
₹24.37
₹1218.67
100
₹21.31
₹2131.46
500
₹21.25
₹10626.83
1000
₹20.04
₹20037.23
