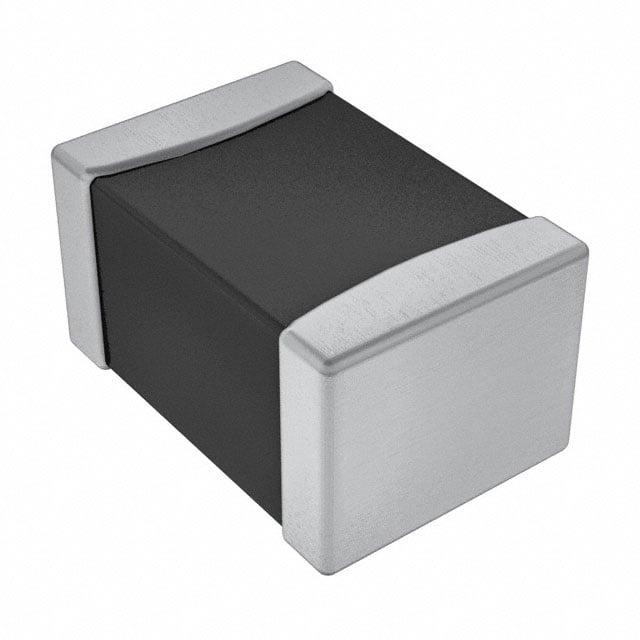

LQM21PN2R2NGCD
Manufacturer
Murata
Description
MURATA - LQM21PN2R2NGCD - Multilayer Inductor, 2.2 H, 0.288 ohm, 40 MHz, 0805 [2012 Metric], LQM21PN_GC Series
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Multilayer
Ferrite
2.2 µH
±30%
800 mA
Shielded
288mOhm Max
40MHz
-55°C ~ 125°C
1 MHz
Surface Mount
0805 (2012 Metric)
0805 (2012 Metric)
0.079" L x 0.049" W (2.00mm x 1.25mm)
0.039" (1.00mm)
₹38.23
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹18.37
₹183.69
25
₹18.37
₹459.22
50
₹18.37
₹918.45
100
₹15.14
₹1514.08
500
₹14.81
₹7403.64
1000
₹14.46
₹14460.45
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Multilayer
Ferrite
2.2 µH
±30%
800 mA
Shielded
288mOhm Max
40MHz
-55°C ~ 125°C
1 MHz
Surface Mount
0805 (2012 Metric)
0805 (2012 Metric)
0.079" L x 0.049" W (2.00mm x 1.25mm)
0.039" (1.00mm)
