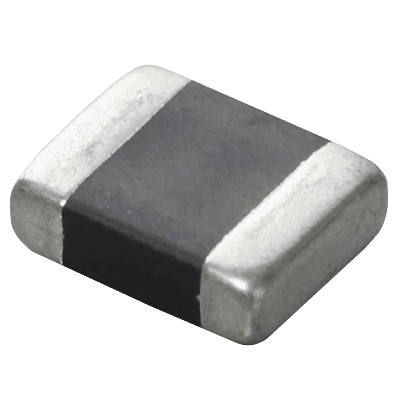

LQM2HPNR47MG0L
Manufacturer
Murata
Description
Inductor Power Chip Shielded Multi-Layer 0.47uH 20% 1MHz Ferrite 1.8A 0.05Ohm DCR 1008 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Packaging
Radiation Hardening
Resistance
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Width
Description
1008
1008
2520
Ferrite
1.8 A
1.8 A
50 mΩ
2.2 mm
1 mm
990.6 µm
470 nH
2.5 mm
Production (Last Updated: 4 years ago)
IN PRODUCTION (Last Updated: 4 years ago)
1.8 A
125 °C
Not
-55 °C
Surface Mount
Tape & Reel
No
40 mΩ
1.8 A
Compliant
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
100 MHz
50 mΩ
Shielded
SMD/SMT
1 MHz
20 %
2.0066 mm
In Stock
Quantity
MOQ : 6
Minimum Qty : 6
Per Unit Price
₹17.92
Total Price
₹107.52
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹105.76
₹105.76
10
₹14.81
₹148.06
25
₹14.77
₹369.26
50
₹14.81
₹740.29
100
₹12.15
₹1215.31
500
₹12.16
₹6078.33
