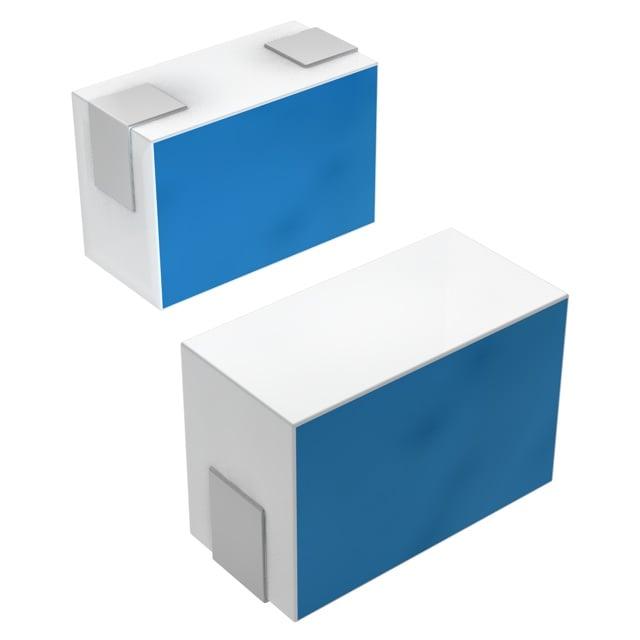

LQP03HQ10NH02D
Manufacturer
Murata
Description
MURATA - LQP03HQ10NH02D - Thin Film Inductor, 10 nH, 0.4 ohm, 4.5 GHz, 300 mA, 0201 [0603 Metric], LQP03HQ_02 Series
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Thick Film
Non-Magnetic
10 nH
±3%
300 mA
Unshielded
400mOhm Max
20 @ 500MHz
4.5GHz
-55°C ~ 125°C
500 MHz
Surface Mount
0201 (0603 Metric)
0201 (0603 Metric)
0.024" L x 0.012" W (0.60mm x 0.30mm)
0.017" (0.42mm)
₹14.64
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹12.44
₹124.44
25
₹12.44
₹311.10
50
₹12.46
₹623.12
100
₹10.21
₹1021.14
500
₹9.71
₹4855.72
1000
₹8.40
₹8399.70
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Thick Film
Non-Magnetic
10 nH
±3%
300 mA
Unshielded
400mOhm Max
20 @ 500MHz
4.5GHz
-55°C ~ 125°C
500 MHz
Surface Mount
0201 (0603 Metric)
0201 (0603 Metric)
0.024" L x 0.012" W (0.60mm x 0.30mm)
0.017" (0.42mm)
