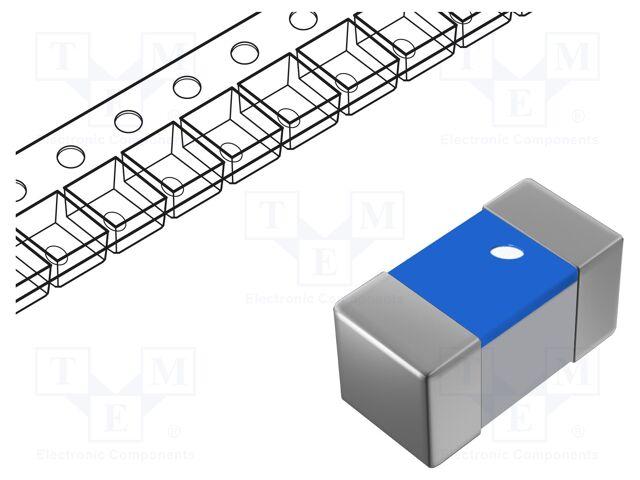

LQP03TN3N2B02D
Manufacturer
Murata
Description
Inductor RF Chip Thin Film 3.2nH 0.1nH 500MHz 14Q-Factor 450mA 250mOhm DCR 0201 Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Q Factor
Resistance
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Width
Description
0201
0201
0603
Thin Film
Non-Magnetic
450 mA
450 mA
250 mΩ
330 µm
330 µm
330.2 µm
3.2 nH
609.6 µm
Production (Last Updated: 4 years ago)
IN PRODUCTION (Last Updated: 4 years ago)
450 mA
125 °C
Not
-55 °C
Surface Mount
14
250 mΩ
450 mA
Compliant
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
8 GHz
250 mΩ
Unshielded
SMD/SMT
500 MHz
304.8 µm
₹12.20
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹10.26
₹102.57
25
₹4.10
₹102.57
50
₹3.55
₹177.51
100
₹2.93
₹292.80
500
₹2.93
₹1464.91
1000
₹2.32
₹2319.53
