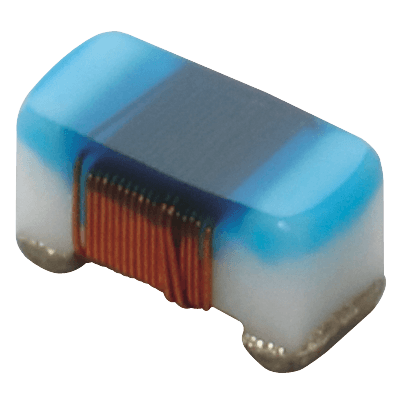

LQW15AN15NH00D
Manufacturer
Murata
Description
Inductor RF Chip Wirewound 15nH 3% 100MHz 30Q-Factor 460mA 160mOhm DCR 0402 Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Inductance Tolerance
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Q Factor
Radiation Hardening
Resistance
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
0402
0402
1005
Wirewound
Non-Magnetic
310 mA
460 mA
460 mA
160 mΩ
700 µm
600 µm
609.6 µm
15 nH
3 %
1 mm
Production (Last Updated: 4 years ago)
IN PRODUCTION (Last Updated: 4 years ago)
460 mA
125 °C
Not
-55 °C
Surface Mount
30
No
160 mΩ
460 mA
Compliant
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
5 GHz
160 mΩ
Unshielded
SMD/SMT
100 MHz
3 %
793.786648 µg
508 µm
In Stock
Quantity
MOQ : 9
Minimum Qty : 9
Per Unit Price
₹11.69
Total Price
₹105.22
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹103.45
₹103.45
10
₹10.31
₹103.10
25
₹9.34
₹233.43
50
₹9.34
₹466.86
100
₹7.72
₹771.91
500
₹7.57
₹3784.33
1000
₹6.34
₹6344.14
