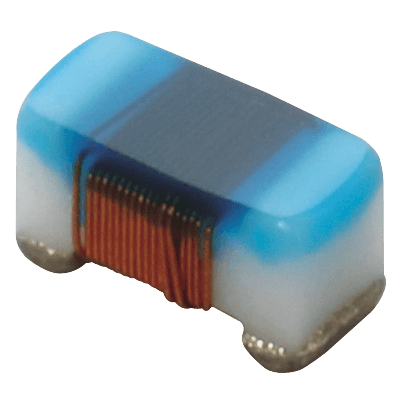

LQW15AN20NJ00D
Manufacturer
Murata
Description
Inductor RF Chip Wirewound 20nH 5% 100MHz 25Q-Factor 370mA 270mOhm DCR 0402 Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Inductance
Inductance Tolerance
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Packaging
Q Factor
Radiation Hardening
Resistance
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
0402
0402
1005
Wirewound
Non-Magnetic
270 mA
370 mA
370 mA
270 mΩ
700 µm
600 µm
20 nH
5 %
1.016 mm
Production (Last Updated: 5 years ago)
IN PRODUCTION (Last Updated: 5 years ago)
370 mA
125 °C
Not
-55 °C
Surface Mount
Cut Tape
25
No
270 mΩ
370 mA
Compliant
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
4 GHz
270 mΩ
Unshielded
SMD/SMT
100 MHz
5 %
793.786648 µg
508 µm
₹9.42
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
25
₹8.98
₹224.60
50
₹8.98
₹449.20
100
₹7.41
₹741.27
500
₹6.99
₹3496.46
1000
₹6.41
₹6409.57
