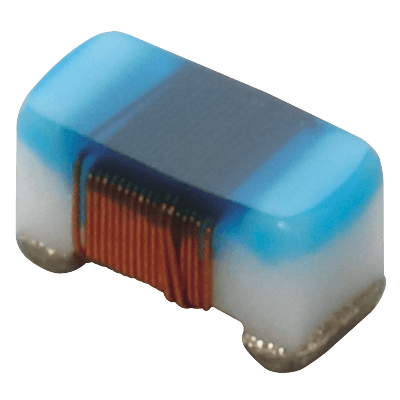

LQW15AN27NJ00D
Manufacturer
Murata
Description
Inductor RF Chip Wirewound 27nH 5% 100MHz 25Q-Factor 280mA 520mOhm DCR 0402 Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Inductance
Inductance Tolerance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Packaging
Q Factor
Radiation Hardening
Resistance
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
0402
0402
1005
Wirewound
Air, Non-Magnetic
280 mA
280 mA
520 mΩ
600 µm
600 µm
27 nH
5 %
Lead Free
1 mm
Production (Last Updated: 4 years ago)
IN PRODUCTION (Last Updated: 4 years ago)
280 mA
125 °C
Not
-55 °C
Surface Mount
Cut Tape
25
No
520 mΩ
280 mA
Compliant
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
3.5 GHz
520 mΩ
Unshielded
SMD/SMT
100 MHz
5 %
793.786648 µg
508 µm
In Stock
Quantity
MOQ : 10
Per Unit Price
₹10.67
Total Price
₹106.70
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹106.70
₹106.70
10
₹10.07
₹100.75
25
₹8.89
₹222.21
50
₹8.89
₹444.40
100
₹7.05
₹705.29
500
₹6.19
₹3094.63
1000
₹6.19
₹6189.27
