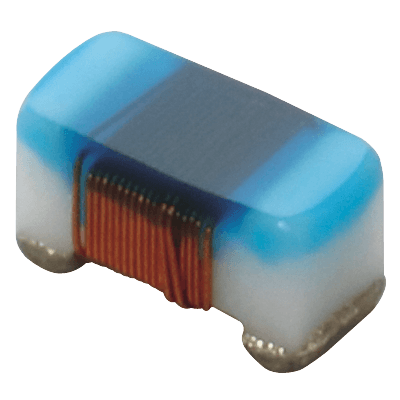

LQW15AN2N9C00D
Manufacturer
Murata
Description
Inductor RF Chip Wirewound 2.9nH 0.2nH 100MHz 20Q-Factor 750mA 70mOhm DCR 0402 Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Packaging
Q Factor
Radiation Hardening
Resistance
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Weight
Width
Description
0402
0402
1005
Wirewound
Non-Magnetic
750 mA
750 mA
70 mΩ
700 µm
600 µm
609.6 µm
2.9 nH
990.6 µm
Production (Last Updated: 4 years ago)
IN PRODUCTION (Last Updated: 4 years ago)
750 mA
125 °C
Not
-55 °C
Surface Mount
Cut Tape
20
No
70 mΩ
750 mA
Compliant
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
15 GHz
70 mΩ
Unshielded
SMD/SMT
100 MHz
793.786648 µg
500 µm
In Stock
Quantity
MOQ : 9
Per Unit Price
₹11.56
Total Price
₹104.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹104.04
₹104.04
10
₹10.56
₹105.64
25
₹9.60
₹240.08
50
₹9.59
₹479.28
100
₹7.78
₹778.05
500
₹7.79
₹3892.92
1000
₹6.29
₹6292.87
