LQW15AN3N0B80D
Manufacturer
Murata
Description

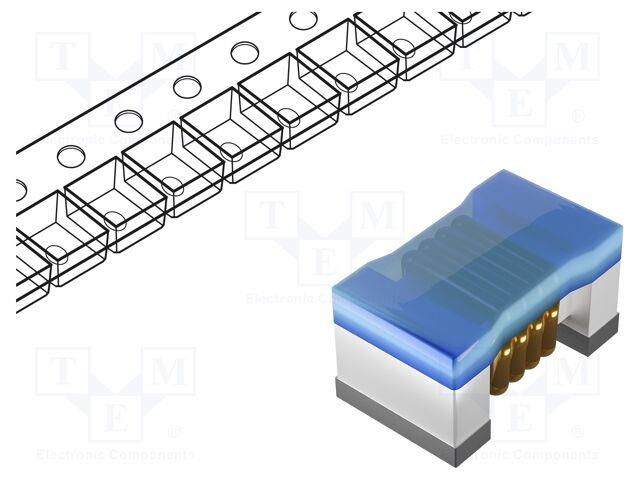

Wirewound Inductor, 3 nH, 0.063 ohm, 12.5 GHz, 1.35 A, 0402 [1005 Metric], LQW15AN_80 Series
Datasheet
DownloadProduct Attributes
Type
Case/Package
Composition
Core Material
Current Rating
DC Resistance (DCR)
Height
Height - Seated (Max)
Inductance
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Q Factor
Resistance
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Test Frequency
Width
Description
0402
Wirewound
Non-Magnetic
1.35 A
63 mΩ
600 µm
609.6 µm
3 nH
990.6 µm
Production (Last Updated: 4 years ago)
IN PRODUCTION (Last Updated: 4 years ago)
125 °C
-55 °C
Surface Mount
20
63 mΩ
1.35 A
Compliant
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
12.5 GHz
63 mΩ
Unshielded
100 MHz
609.6 µm
In Stock
Quantity
MOQ : 6
Minimum Qty : 6
Per Unit Price
₹17.06
Total Price
₹102.33
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹100.57
₹100.57
10
₹13.94
₹139.39
25
₹13.97
₹349.35
50
₹13.97
₹698.70
100
₹11.47
₹1146.86
500
₹10.82
₹5409.61
1000
₹9.43
₹9433.36
Product Attributes
Type
Case/Package
Composition
Core Material
Current Rating
DC Resistance (DCR)
Height
Height - Seated (Max)
Inductance
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Q Factor
Resistance
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Test Frequency
Width
Description
0402
Wirewound
Non-Magnetic
1.35 A
63 mΩ
600 µm
609.6 µm
3 nH
990.6 µm
Production (Last Updated: 4 years ago)
IN PRODUCTION (Last Updated: 4 years ago)
125 °C
-55 °C
Surface Mount
20
63 mΩ
1.35 A
Compliant
8504500000, 8504500000|8504500000, 8504500000|8504500000|8504500000, 8504500000|8504500000|8504500000|8504500000
12.5 GHz
63 mΩ
Unshielded
100 MHz
609.6 µm
