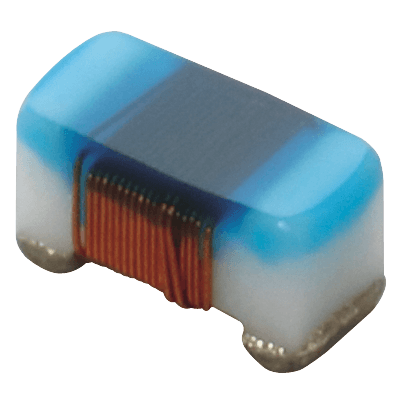

LQW15AN3N9D10D
Manufacturer
Murata
Description
Inductor RF Chip Wirewound 3.9nH 0.5nH 100MHz 30Q-Factor 900mA 40mOhm DCR 0402 Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Packaging
Q Factor
Radiation Hardening
Resistance
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
0402
0402
1005
Wirewound
Non-Magnetic
550 mA
900 mA
900 mA
40 mΩ
700 µm
600 µm
609.6 µm
3.9 nH
Lead Free
1 mm
Production (Last Updated: 4 years ago)
IN PRODUCTION (Last Updated: 4 years ago)
900 mA
125 °C
Not
-55 °C
Surface Mount
Tape & Reel (TR)
30
No
40 mΩ
900 mA
Compliant
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
7 GHz
40 mΩ
Unshielded
SMD/SMT
100 MHz
5 %
793.786648 µg
500 µm
In Stock
Quantity
MOQ : 9
Minimum Qty : 9
Per Unit Price
₹12.64
Total Price
₹113.80
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹111.16
₹111.16
10
₹10.23
₹102.33
25
₹10.16
₹254.07
50
₹10.16
₹508.15
100
₹8.25
₹824.86
500
₹7.57
₹3784.33
1000
₹7.01
₹7007.31
