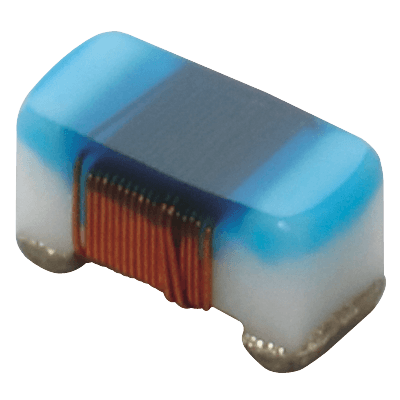

LQW15AN40NJ00D
Manufacturer
Murata
Description
Inductor RF Chip Wirewound 40nH 5% 100MHz 25Q-Factor 250mA 700mOhm DCR 0402 Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Inductance
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Q Factor
Radiation Hardening
Resistance
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
0402
0402
1005
Wirewound
Non-Magnetic
250 mA
250 mA
700 mΩ
600 µm
600 µm
40 nH
1 mm
Production (Last Updated: 5 years ago)
IN PRODUCTION (Last Updated: 5 years ago)
250 mA
125 °C
Not
-55 °C
Surface Mount
25
No
700 mΩ
250 mA
Compliant
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
3 GHz
700 mΩ
Unshielded
SMD/SMT
100 MHz
5 %
793.786648 µg
508 µm
₹9.42
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
25
₹9.44
₹236.07
50
₹9.44
₹472.14
100
₹7.80
₹779.58
500
₹7.79
₹3896.99
1000
₹6.41
₹6409.57
