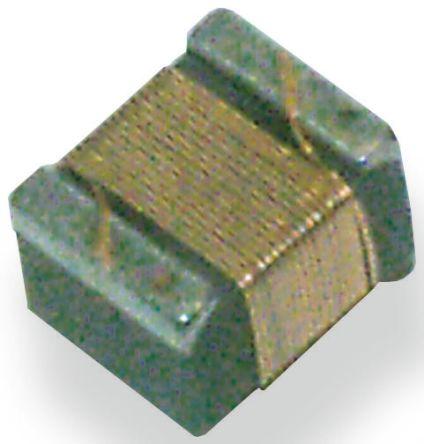

LQW15AN68NG00D
Manufacturer
Murata
Description
Inductor RF Chip Wirewound 68nH 2% 100MHz 20Q-Factor 140mA 1.96Ohm DCR 0402 Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Inductance
Inductance Tolerance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Pins
Packaging
Q Factor
Radiation Hardening
REACH SVHC
Resistance
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Weight
Description
0402
0402
1005
Wirewound
Non-Magnetic
570 mA
140 mA
140 mA
1.96 Ω
600 µm
600 µm
68 nH
2 %
Lead Free
1 mm
Production (Last Updated: 4 years ago)
IN PRODUCTION (Last Updated: 4 years ago)
140 mA
125 °C
Not
-55 °C
Surface Mount
2
Cut Tape
20
No
No SVHC
1.96 Ω
140 mA
Compliant
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
2.5 GHz
1.96 Ω
Unshielded
SMD/SMT
100 MHz
2 %
793.786648 µg
In Stock
Quantity
MOQ : 9
Per Unit Price
₹11.56
Total Price
₹104.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹104.04
₹104.04
10
₹10.47
₹104.66
25
₹9.48
₹236.97
50
₹9.50
₹474.83
100
₹7.35
₹735.37
500
₹7.36
₹3679.51
1000
₹6.51
₹6506.28
