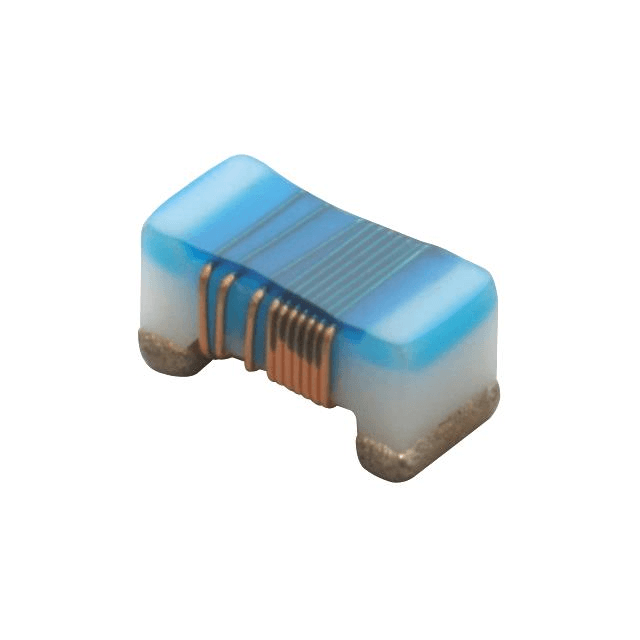

LQW18AN12NG10D
Manufacturer
Murata
Description
MURATA - LQW18AN12NG10D - Wirewound Inductor, 12 nH, 0.071 ohm, 5 GHz, 750 mA, 0603 [1608 Metric], LQW18AN_10 Series
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Non-Magnetic
12 nH
±2%
750 mA
Unshielded
71mOhm Max
38 @ 250MHz
5GHz
-55°C ~ 125°C
100 MHz
Surface Mount
0603 (1608 Metric)
0.063" L x 0.031" W (1.60mm x 0.80mm)
0.039" (1.00mm)
₹17.08
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹13.27
₹132.68
25
₹13.30
₹332.60
50
₹13.30
₹665.21
100
₹10.93
₹1093.42
500
₹10.94
₹5468.04
1000
₹8.99
₹8990.79
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Non-Magnetic
12 nH
±2%
750 mA
Unshielded
71mOhm Max
38 @ 250MHz
5GHz
-55°C ~ 125°C
100 MHz
Surface Mount
0603 (1608 Metric)
0.063" L x 0.031" W (1.60mm x 0.80mm)
0.039" (1.00mm)
