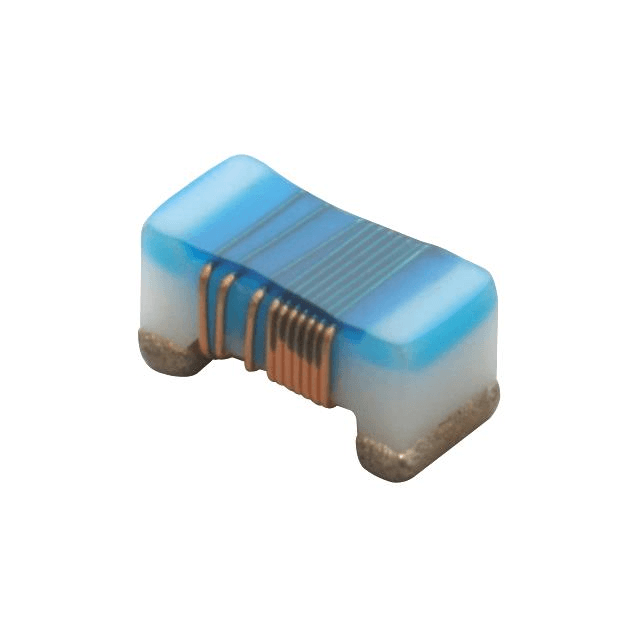

LQW18AN22NG0ZD
Manufacturer
Murata
Description
22 nH Unshielded Drum Core, Wirewound Inductor 500 mA 170mOhm Max 0603 (1608 Metric)
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Non-Magnetic
22 nH
±2%
500 mA
Unshielded
170mOhm Max
40 @ 250MHz
4.6GHz
AEC-Q200
-55°C ~ 125°C
100 MHz
Surface Mount
0603 (1608 Metric)
0.063" L x 0.031" W (1.60mm x 0.80mm)
0.039" (1.00mm)
₹24.34
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹18.85
₹188.49
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Ratings
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Non-Magnetic
22 nH
±2%
500 mA
Unshielded
170mOhm Max
40 @ 250MHz
4.6GHz
AEC-Q200
-55°C ~ 125°C
100 MHz
Surface Mount
0603 (1608 Metric)
0.063" L x 0.031" W (1.60mm x 0.80mm)
0.039" (1.00mm)
