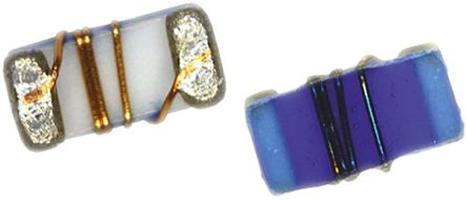

LQW18AN22NJ10D
Manufacturer
Murata
Description
Inductor RF Chip Wirewound 22nH 5% 100MHz 42Q-Factor 640mA 99mOhm DCR 0603 Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Packaging
Q Factor
Radiation Hardening
Resistance
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
0603
0603
1608
Wirewound
Non-Magnetic
900 mA
640 mA
640 mA
99 mΩ
1.1 mm
1 mm
990.6 µm
22 nH
Lead Free
1.6 mm
Production (Last Updated: 4 years ago)
IN PRODUCTION (Last Updated: 4 years ago)
640 mA
125 °C
Not
-55 °C
Surface Mount
Cut Tape (CT)
42
No
99 mΩ
640 mA
Compliant
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
3.2 GHz
99 mΩ
Unshielded
SMD/SMT
100 MHz
5 %
3.005049 mg
787.4 µm
In Stock
Quantity
MOQ : 9
Per Unit Price
₹12.45
Total Price
₹112.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹112.04
₹112.04
10
₹10.85
₹108.48
25
₹10.88
₹272.10
50
₹10.88
₹544.19
100
₹8.93
₹892.76
500
₹8.93
₹4462.90
1000
₹7.34
₹7339.46
