LQW18AN2N2D00D
Manufacturer
Murata
Description

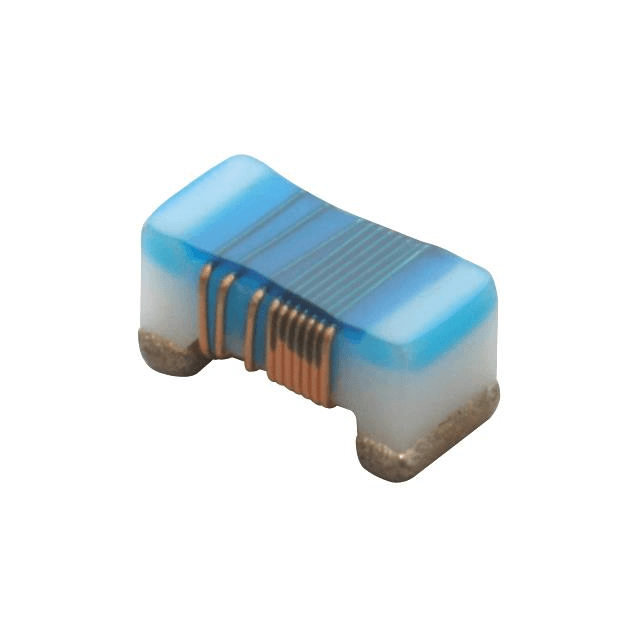

MURATA - LQW18AN2N2D00D - Wirewound Inductor, 2.2 nH, 0.042 ohm, 6 GHz, 700 mA, 0603 [1608 Metric], LQW18AN_00 Series
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Non-Magnetic
2.2 nH
±0.5nH
700 mA
Unshielded
42mOhm Max
16 @ 250MHz
6GHz
-55°C ~ 125°C
100 MHz
Surface Mount
0603 (1608 Metric)
0.063" L x 0.031" W (1.60mm x 0.80mm)
0.039" (1.00mm)
₹13.50
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹11.35
₹113.46
25
₹11.33
₹283.19
50
₹11.35
₹567.30
100
₹9.36
₹936.04
500
₹9.36
₹4681.14
1000
₹8.12
₹8124.00
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Non-Magnetic
2.2 nH
±0.5nH
700 mA
Unshielded
42mOhm Max
16 @ 250MHz
6GHz
-55°C ~ 125°C
100 MHz
Surface Mount
0603 (1608 Metric)
0.063" L x 0.031" W (1.60mm x 0.80mm)
0.039" (1.00mm)
