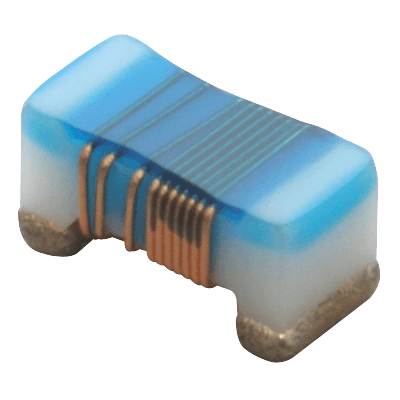

LQW18AN56NJ00D
Manufacturer
Murata
Description
Inductor RF Chip Wirewound 56nH 5% 100MHz 38Q-Factor 360mA 350mOhm DCR 0603 Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Q Factor
Radiation Hardening
Resistance
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
0603
0603
1608
Wirewound
Non-Magnetic
360 mA
360 mA
350 mΩ
1 mm
1 mm
990.6 µm
56 nH
Lead Free
1.6 mm
Production (Last Updated: 5 years ago)
IN PRODUCTION (Last Updated: 5 years ago)
360 mA
125 °C
Not
-55 °C
Surface Mount
38
No
350 mΩ
360 mA
Compliant
8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000
2.4 GHz
350 mΩ
Unshielded
SMD/SMT
100 MHz
5 %
3.005049 mg
787.4 µm
₹12.10
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹10.33
₹103.30
25
₹9.39
₹234.80
50
₹9.39
₹469.59
100
₹7.72
₹772.45
500
₹7.05
₹3526.44
1000
₹6.37
₹6369.19
