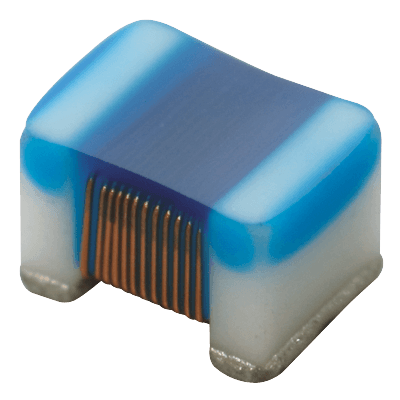

LQW2BAS24NJ00L
Manufacturer
Murata
Description
Inductor RF Chip Unshielded Wirewound 0.024uH 5% 250MHz 50Q-Factor Non Magnetic 0.5A 0.22Ohm DCR 0805 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Core Material
Current Rating
DC Resistance (DCR)
Depth
Height
Height - Seated (Max)
Inductance
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
Packaging
Q Factor
Radiation Hardening
Resistance
RMS Current (Irms)
RoHS
Schedule B
Self Resonant Frequency
Series Resistance
Shielding
Termination
Test Frequency
Tolerance
Weight
Width
Description
0805
0806
2015
Wirewound
Non-Magnetic
500 mA
220 mΩ
1.73 mm
1.52 mm
1.524 mm
24 nH
2.0828 mm
Production (Last Updated: 4 years ago)
IN PRODUCTION (Last Updated: 4 years ago)
500 mA
125 °C
-55 °C
Surface Mount
Tape & Reel (TR)
50
No
220 mΩ
500 mA
Compliant
8504500000
2.4 GHz
220 mΩ
Unshielded
SMD/SMT
250 MHz
5 %
14.004664 mg
1.524 mm
₹16.47
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹13.91
₹139.08
25
₹13.93
₹348.16
50
₹13.94
₹697.23
100
₹11.45
₹1144.66
500
₹11.45
₹5723.32
1000
₹9.99
₹9987.23
