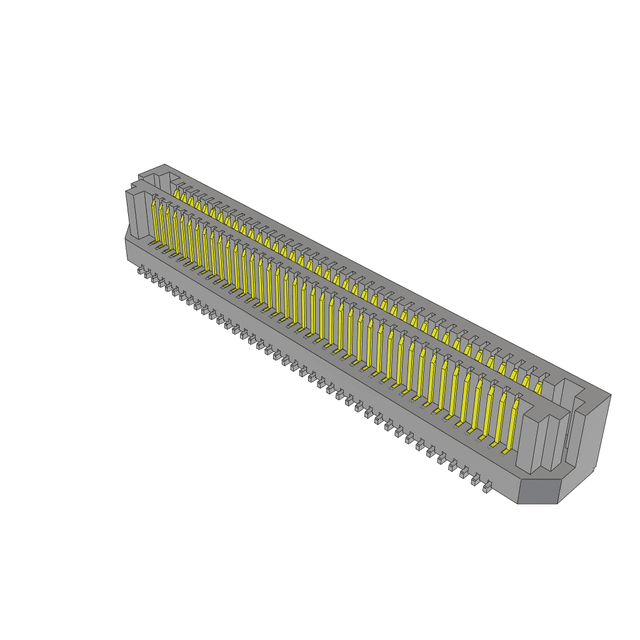

LSS-140-01-L-DV-A

Manufacturer

Samtec

Description

"0.635 mm Razor Beam High-Speed Hermaphroditic Terminal/Socket Strip"

Datasheet

download datasheetDownload

Product Attributes

Type

Connector Type

Contact Material

Contact Plating

Current Rating

Depth

Gender

Housing Color

Housing Material

Lead Free

Length

Lifecycle Status

Manufacturer Lifecycle Status

Mated Stacking Heights

Max Current Rating

Max Operating Temperature

Min Operating Temperature

Mount

Number of Contacts

Number of Positions

Number of Rows

Orientation

Pitch

Radiation Hardening

REACH SVHC

RoHS

Schedule B

Termination

Description

Non-Gendered

Bronze

Gold

1.7 A

4.14 mm

Receptacle

Black

Polymer

Lead Free

30.15 mm

Production (Last Updated: 3 years ago)

PRODUCTION (Last Updated: 3 years ago)

9 mm

1.7 A

125 °C

-55 °C

Surface Mount

80

80

2

Straight

635 µm

No

No

Compliant

8536694040, 8536694040|8536694040|8536694040|8536694040|8536694040

Solder

In Stock

Quantity

MOQ : 1

Minimum Qty : 1

decrement quantity
increment quantity

Per Unit Price

₹442.27

Total Price

₹442.27

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹442.27

₹442.27

10

₹442.27

₹4422.68

25

₹517.43

₹12935.70

50

₹462.43

₹23121.58

100

₹437.02

₹43702.42
