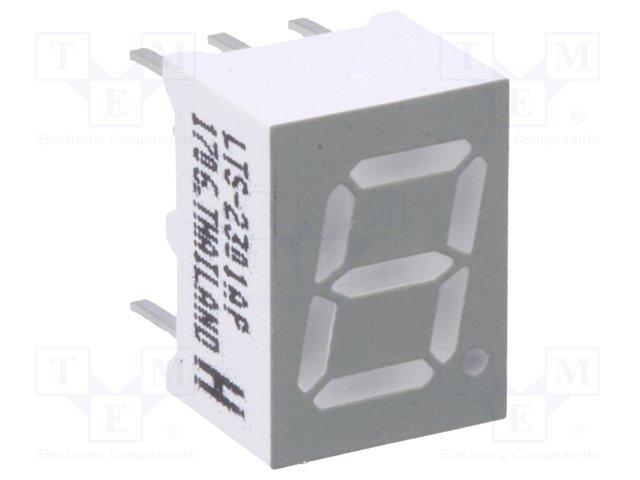

LTS-2301AP
Manufacturer
Lite-On
Description
Display Segmented Module 1DIGIT 8LED B. Red CC 10-Pin DIP Module
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Color
Depth
Dominant Wavelength
Element Configuration
Forward Current
Forward Voltage
Height
Illumination Color
Lead Free
Length
Lifecycle Status
Luminous Intensity
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Characters
Number of Circuits
Number of Contacts
Number of Elements
Number of Pins
Operating Supply Voltage
Power Consumption
Power Dissipation
REACH SVHC
Reverse Voltage
RoHS
Test Current
Viewing Area (height)
Width
Description
DIP
Compliant
Red
10 mm
657 nm
Common Cathode
15 mA
2.1 V
10.0076 mm
Red
Lead Free
9.906 mm
Production (Last Updated: 7 months ago)
750 µcd
85 °C
40 mW
-35 °C
Through Hole
1
1
10
8
10
2.1 V
40 mW
40 mW
Yes
5 V
Compliant
20 mA
7 mm
7.366 mm
Out of Stock
Quantity
MOQ : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
