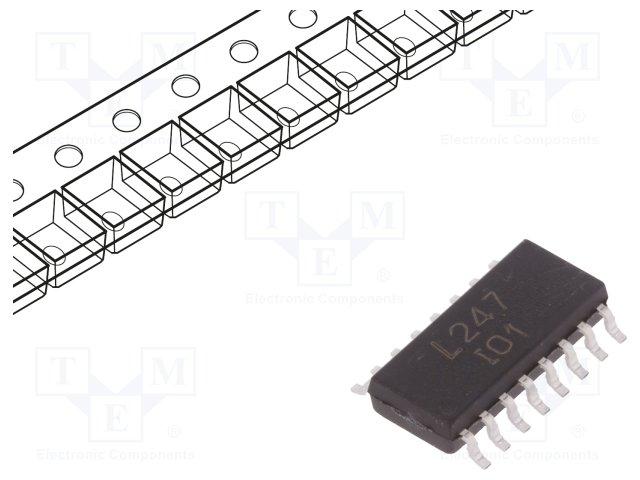

LTV-247
Manufacturer
Lite-On
Description
Quad Channel 50 mA 3750 Vrms 600% CTR Optoisolator Transistor - SOIC-16
Datasheet
DownloadProduct Attributes
Type
Case/Package
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Current Transfer Ratio
Forward Current
Forward Voltage
Height
Isolation Voltage
Max Collector Current
Max Input Current
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Voltage
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Output Current per Channel
Power Dissipation
Radiation Hardening
Reverse Breakdown Voltage
Reverse Voltage
RoHS
Schedule B
Turn-Off Delay Time
Turn-On Delay Time
Description
SMD/SMT
400 mV
80 V
600 %
20 mA
1.2 V
2.42 mm
3.75 kV
50 mA
50 mA
125 °C
110 °C
80 V
200 mW
-55 °C
Surface Mount
4
4
16
50 mA
170 mW
No
6 V
6 V
Compliant
8541408000, 8541408000|8541408000|8541408000, 8541408000|8541408000|8541408000|8541408000, 8541408000|8541408000|8541408000|8541408000|8541408000
3 µs
3 µs
In Stock
Quantity
MOQ : 1
Per Unit Price
₹139.60
Total Price
₹139.60
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹139.60
₹139.60
10
₹86.52
₹865.19
25
₹86.48
₹2162.09
50
₹86.48
₹4324.18
100
₹60.42
₹6042.11
500
₹50.97
₹25485.36
1000
₹47.00
₹47001.33
