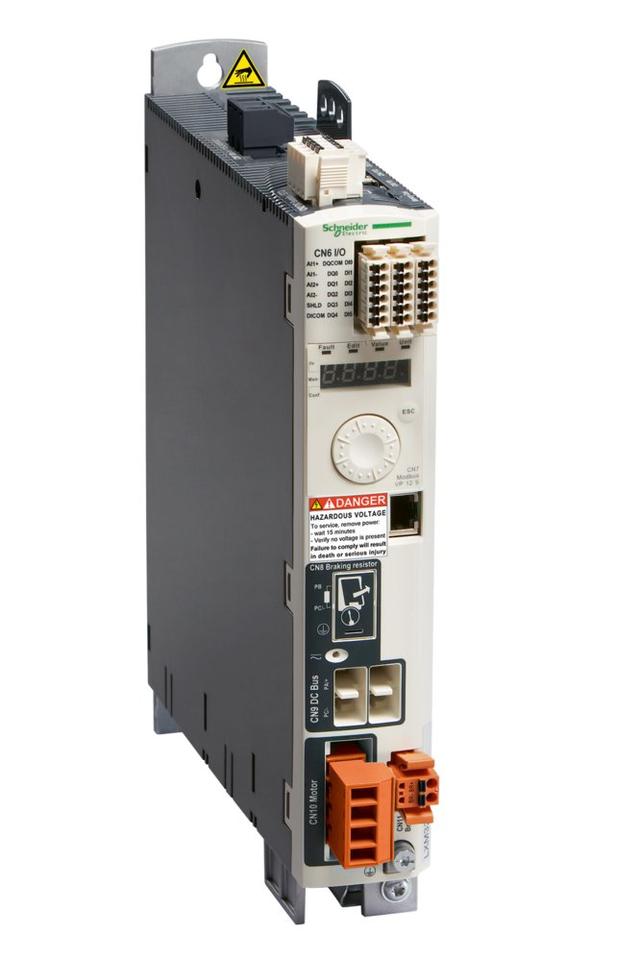

Name: LXM32CD18N4 - motion servo drive - Lexium 32 - three-phase supply voltage 208/480V - 1.8 kW
Brand: Schneider Electric
Price: 157102.30 INR
Availability: InStock

motion servo drive - Lexium 32 - three-phase supply voltage 208/480V - 1.8 kW

LXM32C P/D +/- 10v 18A RMS peak 3ph 480V | Schneider Electric LXM32CD18N4

Schneider Electric Lexium 32 & Motoren LXM32CD18N4 - LXM32CD18N4

This Product Is Part Of The Lexium 32 Range, An Offer Of Motion Servo Drives For Machines From 0.15Kw To 7Kw. The Ac Motion Servo Drive For One Axis, Features With An Integrated Emc Filter, Compact Drive With Analogue Inputs And Pulse Train. It Provides 2 Safety, 6 Logic Discrete Inputs And 5 Discrete Outputs. Thanks To Its Compact Design This Servo Drive Enables To Save On Cabinet Space And Size, Reduces The Machine Footprint And Decreases Costs. It Is A Motion Servo Drive With A Rated Supply Voltage Of 200V To 240V, 380V To 480V (Three Phase), A Continuous Output Current Of 6A At 8Khz And A Continuous Power Of 3300W At 400V. It Is Furnished With Terminal For Electrical Connection And Rj45 Connector For Modbus Integrated Communication Interface. It Is An Ip20 Rated Product. Its Dimensions Are 48Mm (Width) X 237Mm (Depth) X 270Mm (Height). It Weighs 2Kg. This Product Is Certified By Ce, Csa, Rohs, Tuv And Ul. It Meets En/Iec 61800-3 And En/Iec 61800-5-1 Standards. This Product Is Compatible With Servo Motors Bmh And Bsh. Servo Drive Range With Four Servo Drive Models And Two Servo Motor Families Plus An Intelligent Selection Of Options. It Provides You With The Drive And Motor Combination That Has Exactly The Right Power, Performance And Functionality.
