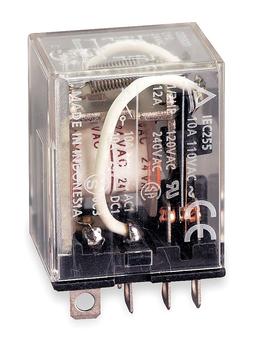

LY2-DC12
Manufacturer
Omron
Description
Electromechanical Relay 12VDC 160Ohm 10A DPDT (28x21.5x42.4)mm Socket General Purpose Relay
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Approvals
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (DC)
Contact Current Rating
Contact Material
Current Rating
Depth
Height
Lead Free
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Operate Time
Packaging
Power Consumption
Power Rating
Radiation Hardening
REACH SVHC
Relay Type
Release Time
RoHS
Schedule B
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
55 °C
CSA, UL, VDE
75 mA
900 mW
160 Ω
Non-Latching
12 V
10 A
Silver
10 A
21.5 mm
36 mm
Lead Free
28 mm
10 A
55 °C
250 V
125 V
-25 °C
Plug-In, Socket, Socketable
2
8
25 ms
Bulk
900 mW
900 mW
No
Unknown
General Purpose
25 ms
Compliant
8536490075, 8536490075|8536490075|8536490075|8536490075|8536490075
Quick Connect
DPDT
250 V
125 V
21.59 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹1056.37
Total Price
₹1056.37
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1056.37
₹1056.37
10
₹942.91
₹9429.08
25
₹893.79
₹22344.71
50
₹858.38
₹42919.02
100
₹824.14
₹82413.72
500
₹752.15
₹376072.91
1000
₹752.14
₹752144.05
