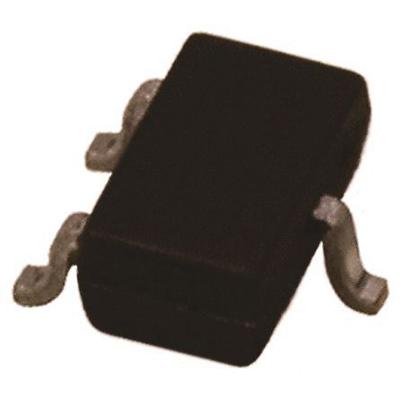

M1MA142WAT1G
Manufacturer
onsemi
Description
Rectifier Diode Small Signal Switching 80V 0.15A 10ns 3-Pin SC-70 T/R
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Contact Plating
Current Rating
Element Configuration
Forward Current
Forward Voltage
Halogen Free
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Breakdown Voltage
Min Operating Temperature
Number of Elements
Number of Pins
Number of Terminals
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Power Dissipation
Radiation Hardening
REACH SVHC
Recovery Time
Reverse Recovery Time
Reverse Standoff Voltage
RoHS
Schedule B
Voltage Rating (DC)
Width
Description
100 mA
SOT-323-3
Compliant
Tin
100 mA
Common Anode
150 mA
1.2 V
Halogen Free
900 µm
Lead Free
2.2 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
750 mA
150 °C
100 mA
150 mW
80 V
100 nA
80 V
750 mA
80 V
-55 °C
2
3
3
Tape and Reel
750 mA
100 nA
150 mW
No
Yes
10 ns
10 ns
75 V
Compliant
8541100070, 8541100070|8541100070|8541100070|8541100070|8541100070
80 V
1.35 mm
In Stock
Quantity
MOQ : 9
Minimum Qty : 9
Per Unit Price
₹11.37
Total Price
₹102.33
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹103.22
₹103.22
10
₹10.59
₹105.86
25
₹7.08
₹176.88
50
₹7.08
₹353.76
100
₹4.89
₹488.74
500
₹3.75
₹1876.44
1000
₹3.02
₹3020.65
