M20-9990646

Manufacturer

Harwin

Description

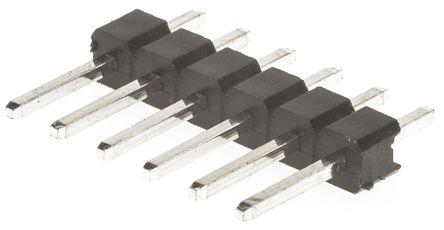

2.54mm (0.1) Pitch SIL Vertical PC Tail Pin Header, 6.1mm mating pin height, tin, 6 contacts"

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

Color

Connector Type

Contact Material

Contact Mating Length

Contact Plating

Current Rating

Depth

Gender

Housing Color

Housing Material

Insulation Resistance

Lead Pitch

Length

Max Current Rating

Max Operating Temperature

Min Operating Temperature

Mount

Number of Contacts

Number of Pins

Number of Positions

Number of Rows

Orientation

Pitch

Radiation Hardening

REACH SVHC

RoHS

Termination

Voltage Rating (AC)

Voltage Rating (DC)

Weight

Description

SIL

Black

Male Pin

Brass

6.096 mm

Tin

3 A

2.54 mm

Male

Black

Nylon

10 GΩ

2.54 mm

15.24 mm

3 A

105 °C

-40 °C

Through Hole

6

6

6

1

Straight

2.54 mm

No

No SVHC

Compliant

Solder

750 V

750 V

347.990396 mg

In Stock

Quantity

MOQ : 4

decrement quantity
increment quantity

Per Unit Price

₹25.79

Total Price

₹103.15

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹103.15

₹103.15

10

₹20.99

₹209.85

25

₹21.04

₹525.96

50

₹21.00

₹1050.14

100

₹16.97

₹1697.26

500

₹14.85

₹7423.93

1000

₹13.96

₹13963.11
