M2022SS1W01
Manufacturer
NKK Switches
Description

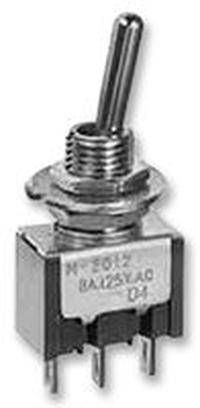

Switch Toggle ON None ON DPDT Small Bat Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads
Datasheet
DownloadProduct Attributes
Type
Actuator Length
Actuator Material
Contact Current Rating
Contact Material
Contact Plating
Depth
Electrical Life
Flammability Rating
Illumination Type
Insulation Resistance
Lead Free
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Pins
Number of Poles
Number of Positions
Orientation
REACH SVHC
RoHS
Switch Function
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
10.5 mm
Brass, Chrome
6 A
Silver
Silver
12.7 mm
25 kcycles
UL94 V-0
Illuminated, Non-Illuminated
1 GΩ
Lead Free
13 mm
6 A
85 °C
250 V
30 V
-30 °C
Bushing, Panel
2
2
2
Vertical
No
Compliant
On-On
Solder
DPDT
250 V
30 V
12.7 mm
₹977.21
Out of Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹977.21
₹977.21
10
₹865.89
₹8658.86
25
₹832.02
₹20800.61
50
₹795.54
₹39776.82
100
₹795.54
₹79553.64
500
₹795.54
₹397768.24
1000
₹795.54
₹795536.48
