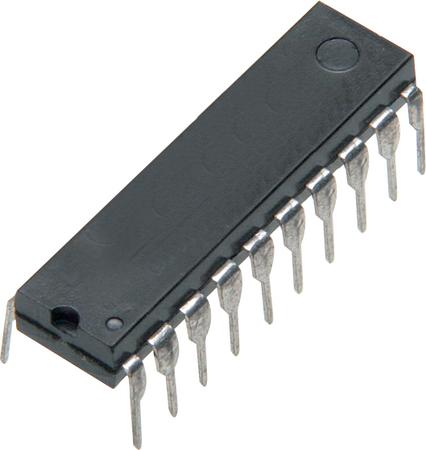

M74HC273B1R
Manufacturer
STMicroelectronics
Description
D Flip-Flop, HC/UH Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, CMOS, PDIP20
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Clock Edge Trigger Type
Frequency
Height
Height - Seated (Max)
High Level Output Current
Lead Free
Length
Lifecycle Status
Load Capacitance
Logic Function
Low Level Output Current
Max Frequency
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Bits per Element
Number of Circuits
Number of Elements
Number of Gates
Number of Input Lines
Number of Inputs
Number of Output Lines
Number of Pins
Number of Terminals
Operating Supply Voltage
Output Current
Polarity
Power Dissipation
Propagation Delay
Radiation Hardening
REACH SVHC
RoHS
Terminal Pitch
Termination
Turn-On Delay Time
Width
Description
DIP
Compliant
Positive Edge
20 MHz
3.93 mm
3.93 mm
-5.2 mA
Lead Free
25.15 mm
Obsolete (Last Updated: 9 months ago)
50 pF
D-Type, Flip-Flop
4 mA
24 MHz
125 °C
6 V
-55 °C
2 V
Through Hole
8
8
1
1
8
8
1
8
20
20
4.5 V
5.2 mA
Non-Inverting
500 mW
220 ns
No
Yes
Compliant
2.54 mm
Through Hole
15 ns
7.62 mm
Out of Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹117.20
Total Price
₹117.20
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹117.20
₹117.20
10
₹79.01
₹790.09
25
₹79.01
₹1975.23
50
₹79.01
₹3950.45
100
₹51.36
₹5136.13
500
₹35.56
₹17782.15
1000
₹35.56
₹35564.29
