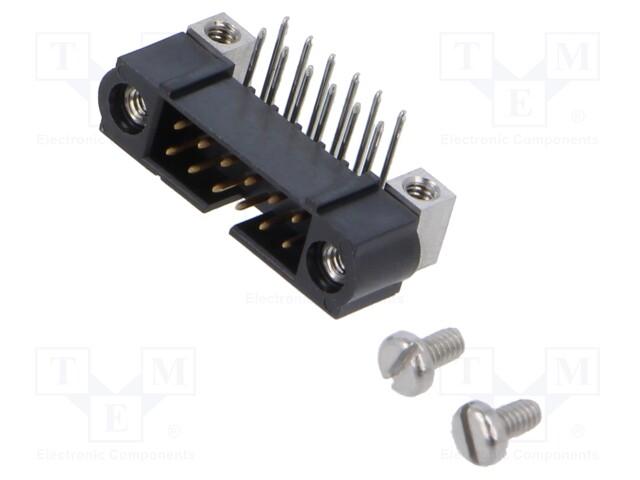

M80-5401242
Manufacturer
Harwin
Description
Datamate J-Tek ROHS3Compliant COMMERCIAL UL Connector Header 500Cycles UL94V-0 25mOhm -55C~125C
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Gender
Contact Material
Contact Plating
Contact Resistance
Current Rating
Flammability Rating
Gender
Height
Housing Color
Housing Material
Insulation Resistance
Lead Pitch
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Positions
Number of Rows
Orientation
Pitch
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Termination
Voltage Rating
Width
Description
Black
Male Pin
Male
Bronze, Copper
Gold
25 mΩ
3 A
UL94 V-0
Male
5.55 mm
Black
Polyphenylene
100 MΩ
2 mm
3 A
125 °C
120 V
-55 °C
Through Hole
12
12
12
2
Right Angle
2 mm
No
No
Compliant
2.0066 mm
Solder
120 V
5.6 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹2218.23
Total Price
₹2218.23
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹2218.23
₹2218.23
10
₹2218.23
₹22182.28
25
₹1927.21
₹48180.35
50
₹1825.97
₹91298.61
100
₹1792.90
₹179290.29
