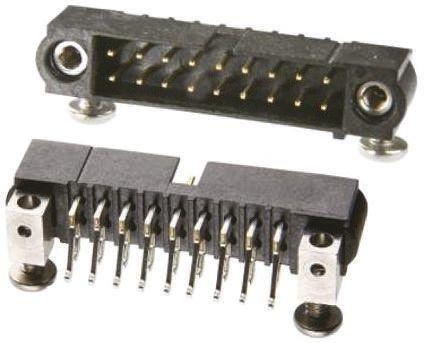

M80-5422642
Manufacturer
Harwin
Description
Connector, Header26Pos, 2Row, 2Mm Rohs Compliant: Yes |Harwin M80-5422642
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Gender
Contact Material
Contact Plating
Contact Resistance
Current Rating
Depth
Fastening Type
Gender
Housing Color
Housing Material
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Pitch
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Termination
Voltage Rating
Description
Black
Male Pin
Male
Brass
Gold
25 mΩ
3 A
10.1 mm
Threaded
Male
Black
Polyphenylene
36 mm
3 A
125 °C
120 V
-55 °C
Surface Mount
26
26
2
Right Angle
2 mm
No
No
Compliant
2.0066 mm
Solder
120 V
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹1939.96
Total Price
₹1939.96
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1939.96
₹1939.96
10
₹1534.41
₹15344.10
25
₹1534.36
₹38358.94
50
₹1534.36
₹76717.88
100
₹1534.35
₹153434.87
500
₹1396.75
₹698374.22
