MAL210618103E3
Manufacturer
Vishay Beyschlag/Draloric/BC Components
Description

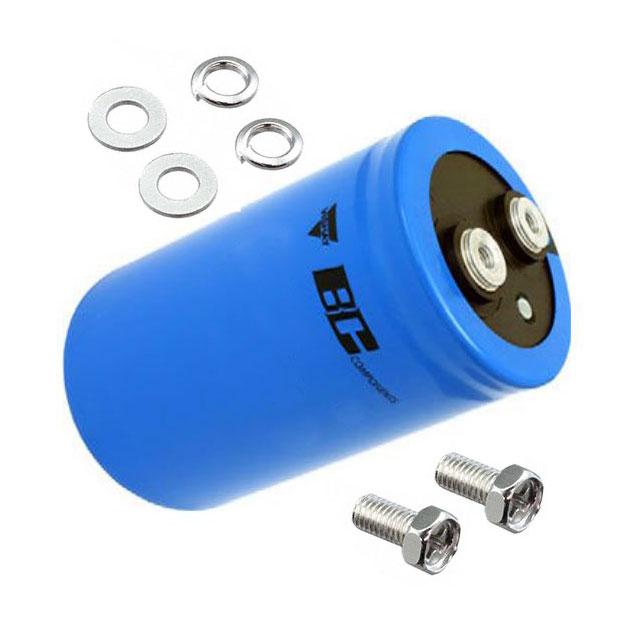

VISHAY - MAL210618103E3 - Electrolytic Capacitor, Screw, 10000 F, 63 V, -10%, +30%, Screw, 20000 hours @ 85C
Datasheet
DownloadProduct Attributes
Type
Capacitance
Tolerance
Voltage - Rated
ESR (Equivalent Series Resistance)
Lifetime @ Temp.
Max Operating Temperature
Polarization
Applications
Ripple Current (AC)
Impedance
Lead Spacing
Size / Dimension
Height - Seated (Max)
Mounting Type
Case/Package
Description
10000 µF
-10%, +30%
63 V
12mOhm @ 100Hz
20000 Hrs @ 85°C
-40°C ~ 85°C
Polar
General Purpose
17 A @ 100 Hz
9 mOhms
0.874" (22.20mm)
1.969" Dia (50.00mm)
3.535" (89.80mm)
Chassis Mount
Radial, Can - Screw Terminals
₹6586.17
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹6586.17
₹6586.17
10
₹4919.84
₹49198.35
25
₹4831.68
₹120791.90
50
₹4614.42
₹230720.91
100
₹4434.08
₹443408.09
Product Attributes
Type
Capacitance
Tolerance
Voltage - Rated
ESR (Equivalent Series Resistance)
Lifetime @ Temp.
Max Operating Temperature
Polarization
Applications
Ripple Current (AC)
Impedance
Lead Spacing
Size / Dimension
Height - Seated (Max)
Mounting Type
Case/Package
Description
10000 µF
-10%, +30%
63 V
12mOhm @ 100Hz
20000 Hrs @ 85°C
-40°C ~ 85°C
Polar
General Purpose
17 A @ 100 Hz
9 mOhms
0.874" (22.20mm)
1.969" Dia (50.00mm)
3.535" (89.80mm)
Chassis Mount
Radial, Can - Screw Terminals
