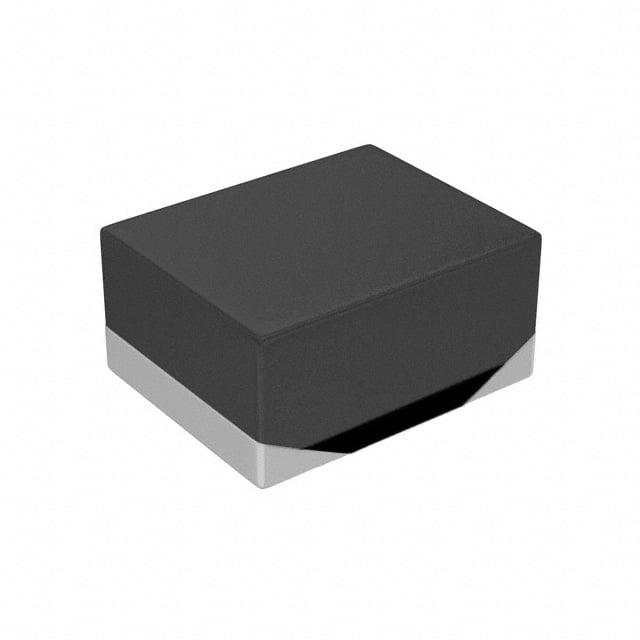

MAMK2520T2R2M
Manufacturer
Taiyo Yuden
Description
2.2 H Shielded Drum Core, Wirewound Inductor 1.9 A 117mOhm Max 1008 (2520 Metric)
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Metal
2.2 µH
±20%
1.9 A
2A
Shielded
117mOhm Max
-40°C ~ 105°C
2 MHz
Surface Mount
1008 (2520 Metric)
1008 (2520 Metric)
0.098" L x 0.079" W (2.50mm x 2.00mm)
0.047" (1.20mm)
₹21.67
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹17.33
₹173.29
25
₹17.33
₹433.21
50
₹17.33
₹866.43
100
₹14.27
₹1427.37
500
₹14.27
₹7136.85
1000
₹11.86
₹11859.17
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Metal
2.2 µH
±20%
1.9 A
2A
Shielded
117mOhm Max
-40°C ~ 105°C
2 MHz
Surface Mount
1008 (2520 Metric)
1008 (2520 Metric)
0.098" L x 0.079" W (2.50mm x 2.00mm)
0.047" (1.20mm)
