MBR130T3G
Manufacturer
onsemi
Description

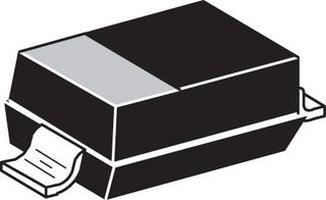

ON Semi MBR130T3G, SMT Schottky Diode, 30V 1A, 2-Pin SOD-123FL | ON Semiconductor MBR130T3G
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Contact Plating
Current Rating
Element Configuration
Forward Current
Forward Voltage
Halogen Free
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Number of Elements
Number of Pins
Number of Terminals
Output Current
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
Reverse Voltage
RoHS
Schedule B
Voltage Rating (DC)
Width
Description
1 A
SOD-123-2
Compliant
Tin
1 A
Single
1 A
350 mV
Halogen Free
1.35 mm
Lead Free
2.84 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
5.5 A
125 °C
125 °C
1 A
30 V
60 µA
30 V
5.5 A
-65 °C
1
2
2
1 A
Tape and Reel
5.5 A
60 µA
Standard
No
Yes
30 V
30 V
Compliant
8541100080, 8541100080|8541100080, 8541100080|8541100080|8541100080, 8541100080|8541100080|8541100080|8541100080
30 V
1.8 mm
In Stock
Quantity
MOQ : 4
Minimum Qty : 4
Per Unit Price
₹26.41
Total Price
₹105.62
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹105.62
₹105.62
10
₹16.02
₹160.20
25
₹16.05
₹401.37
50
₹16.05
₹802.74
100
₹8.82
₹881.62
500
₹7.59
₹3796.33
1000
₹6.36
₹6357.19
