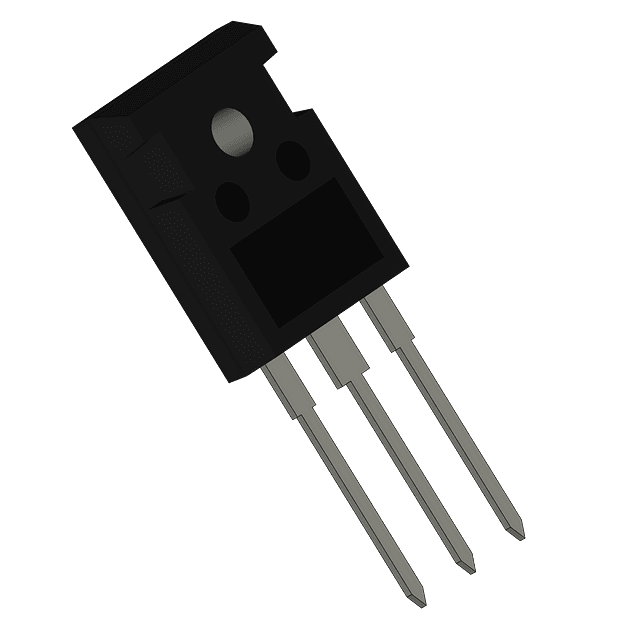

MBR60L45WTG
Manufacturer
onsemi
Description
Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 45V V(RRM), Silicon, TO-247AB
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Element Configuration
Forward Current
Forward Voltage
Lead Free
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Number of Elements
Number of Pins
Number of Terminals
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
RoHS
Schedule B
Description
30 A
TO-247
Compliant
Common Cathode
30 A
530 mV
Lead Free
Obsolete (Last Updated: 6 months ago)
OBSOLETE (Last Updated: 6 months ago)
60 A
175 °C
30 A
45 V
275 nA
45 V
200 A
-65 °C
2
3
3
200 A
1.2 mA
No
Yes
45 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
Out of Stock
Quantity
MOQ : Unavailable
Minimum Qty : Unavailable
Per Unit Price
Unavailable
Total Price
Unavailable
Ships in 7-10 days from Bengaluru
