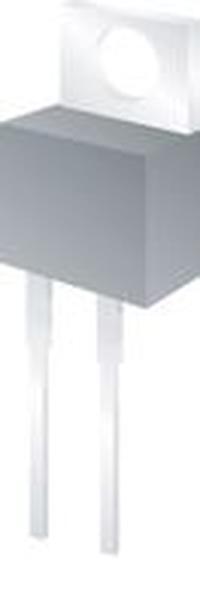

MBR750
Manufacturer
onsemi
Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 7.5A, 50V V(RRM), Silicon, TO-220AC
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Output Current
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
RoHS
Termination
Voltage Rating (DC)
Weight
Width
Description
7.5 A
TO-220-2
Non-Compliant
7.5 A
Single
7.5 A
750 mV
6.35 mm
Lead Free
6.35 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
150 A
150 °C
7.5 A
2 W
50 V
500 µA
50 V
150 A
-65 °C
Through Hole
1
2
2
7.5 A
150 A
500 µA
Standard
No
No
50 V
Compliant
Through Hole
50 V
2.16 g
6.35 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹157.91
Total Price
₹157.91
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹157.91
₹157.91
10
₹106.66
₹1066.58
25
₹106.68
₹2666.89
50
₹106.68
₹5333.78
100
₹83.91
₹8391.49
500
₹64.59
₹32292.93
1000
₹61.20
₹61198.21
