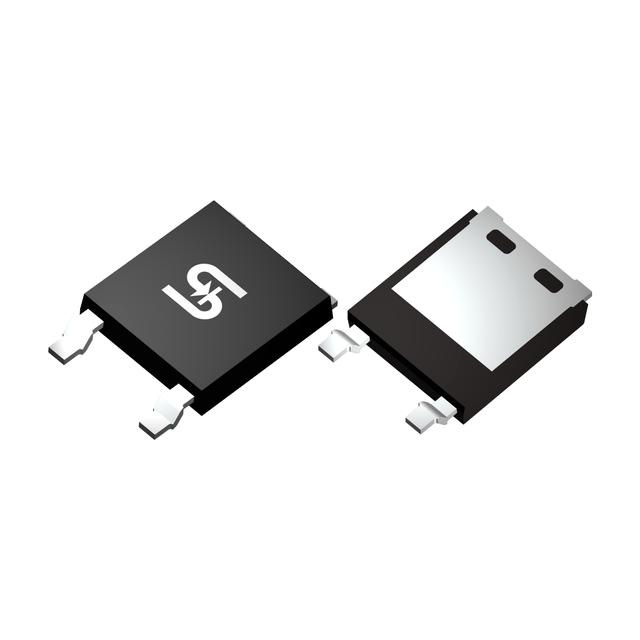

MBRAD20200H
Manufacturer
Taiwan Semiconductor
Description
Schottky Diodes & Rectifiers 20A, 200V, Schottky Rectifier
Datasheet
DownloadProduct Attributes
Type
Technology
Voltage
Average Rectified Current
Forward Voltage
Speed
Current - Reverse Leakage @ Vr
Capacitance @ Vr, F
Grade
Qualification
Mounting Type
Case/Package
Packaging
Max Junction Temperature (Tj)
Description
Schottky
200 V
20A
950 mV @ 20 A
Fast Recovery =< 500ns, > 200mA (Io)
10 µA @ 200 V
295pF @ 4V, 1MHz
Automotive
AEC-Q101
Surface Mount
TO-252-3, DPAK (2 Leads + Tab), SC-63
ThinDPAK
-55°C ~ 150°C
₹224.18
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹224.18
₹224.18
10
₹142.56
₹1425.57
25
₹142.56
₹3563.93
50
₹106.73
₹5336.28
100
₹95.15
₹9515.08
500
₹74.85
₹37426.25
1000
₹74.85
₹74851.57
Product Attributes
Type
Technology
Voltage
Average Rectified Current
Forward Voltage
Speed
Current - Reverse Leakage @ Vr
Capacitance @ Vr, F
Grade
Qualification
Mounting Type
Case/Package
Packaging
Max Junction Temperature (Tj)
Description
Schottky
200 V
20A
950 mV @ 20 A
Fast Recovery =< 500ns, > 200mA (Io)
10 µA @ 200 V
295pF @ 4V, 1MHz
Automotive
AEC-Q101
Surface Mount
TO-252-3, DPAK (2 Leads + Tab), SC-63
ThinDPAK
-55°C ~ 150°C
