MBRD650CTT4G
Manufacturer
onsemi
Description

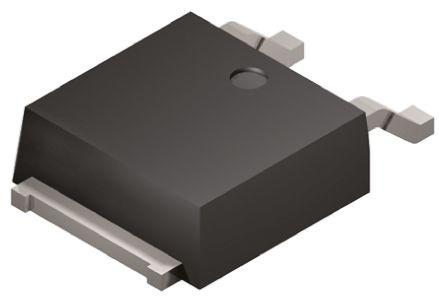

ON Semi MBRD650CTT4G; Dual SMT Schottky Diode; Common Cathode; 50V 6A; 3-Pin D-PAK
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Current Rating
Element Configuration
Forward Current
Forward Voltage
Halogen Free
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Breakdown Voltage
Min Operating Temperature
Number of Elements
Number of Pins
Number of Terminals
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
RoHS
Schedule B
Voltage Rating (DC)
Width
Description
3 A
DPAK
Non-Compliant
6 A
Common Cathode
6 A
900 mV
Halogen Free
2.38 mm
Lead Free
6.73 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
75 A
175 °C
3 A
50 V
50 V
50 V
-65 °C
2
3
2
Tape and Reel
75 A
100 µA
No
No
50 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
50 V
6.22 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹142.92
Total Price
₹142.92
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹142.92
₹142.92
10
₹96.95
₹969.54
25
₹96.94
₹2423.40
50
₹96.92
₹4845.93
100
₹83.60
₹8359.73
500
₹69.70
₹34848.66
1000
₹62.96
₹62961.73
