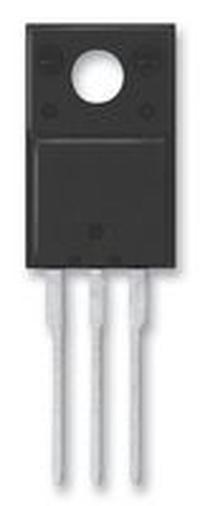

MBRF2060CTG
Manufacturer
onsemi
Description
Rectifier Diode Schottky 60V 20A 3-Pin(3+Tab) TO-220FP Tube / DIODE ARRAY SCHOTTKY 60V TO220FP
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Number of Elements
Number of Pins
Number of Terminals
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
RoHS
Schedule B
Voltage Rating (DC)
Weight
Width
Description
10 A
TO-220-3
Non-Compliant
20 A
Common Cathode
20 A
950 mV
16.12 mm
Lead Free
10.63 mm
EOL (Last Updated: 6 months ago)
LAST SHIPMENTS (Last Updated: 6 months ago)
150 A
175 °C
10 A
60 V
150 µA
60 V
150 A
-65 °C
2
3
3
150 A
150 µA
No
No
60 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
60 V
4.535924 g
4.9 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹157.03
Total Price
₹157.03
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹157.03
₹157.03
10
₹156.68
₹1566.79
