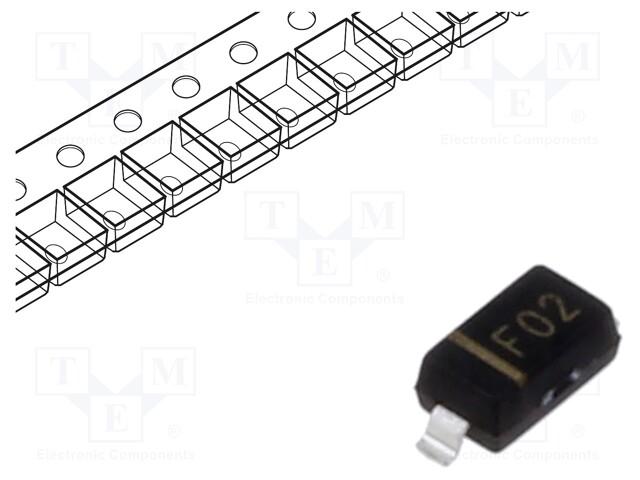

MBRX120LF-TP
Manufacturer
MCC
Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 1A, 20V V(RRM), Silicon
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
China RoHS
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
Reverse Voltage
RoHS
Schedule B
Description
1 A
75 pF
Compliant
Single
1 A
200 mV
1.35 mm
Lead Free
Production (Last Updated: 9 months ago)
12 A
125 °C
125 °C
1 A
556 mW
20 V
20 V
12 A
-65 °C
Surface Mount
1
2
2
Cut Tape
12 A
260 µA
No
Yes
20 V
20 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
In Stock
Quantity
MOQ : 3
Minimum Qty : 3
Per Unit Price
₹34.08
Total Price
₹102.23
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹103.11
₹103.11
10
₹22.30
₹222.97
25
₹22.24
₹556.10
50
₹22.26
₹1113.08
100
₹12.88
₹1287.58
500
₹11.20
₹5599.78
1000
₹9.81
₹9807.11
