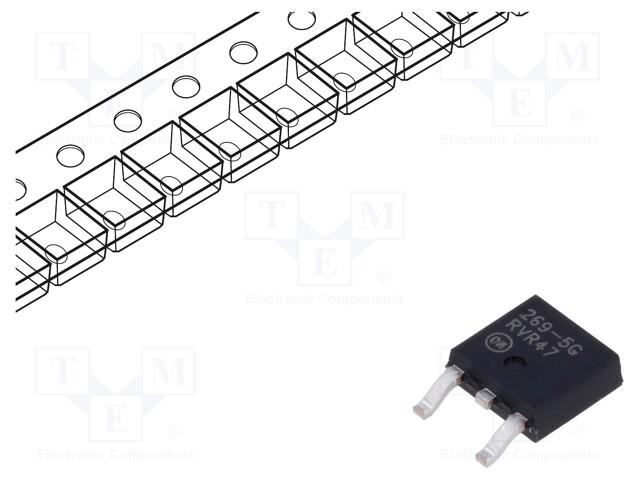

MC33269DTRK-5.0G
Manufacturer
onsemi
Description
MC33269 Series 800 mA 5 V Fixed Output SMT LDO Voltage Regulator - TO-252
Datasheet
DownloadProduct Attributes
Type
Accuracy
Case/Package
China RoHS
Contact Plating
Dropout Voltage
Halogen Free
Height - Seated (Max)
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Manufacturer Package Identifier
Min Current Limit
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Mount
Nominal Output Voltage
Number of Channels
Number of Circuits
Number of Outputs
Number of Pins
Number of Regulators
Number of Terminals
Output Current
Output Type
Output Voltage
Output Voltage Accuracy
Polarity
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Terminal Pitch
Voltage Tolerance
Width
Description
1 %
DPAK
Non-Compliant
Tin
1.1 V
Halogen Free
2.38 mm
Lead Free
6.54 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
20 V
150 °C
125 °C
800 mA
DPAK DT SUFFIX CASE 369C ISSUE D
800 mA
6.5 V
-40 °C
5 V
Surface Mount
5 V
1
1
1
3
1
2
800 mA
Fixed
5 V
1 %
Positive
20 mA
No
No SVHC
Compliant
8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000
2.29 mm
2 %
6.095 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹112.93
Total Price
₹112.93
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹112.93
₹112.93
10
₹47.39
₹473.94
25
₹47.38
₹1184.41
50
₹47.38
₹2368.83
100
₹34.63
₹3463.43
500
₹31.49
₹15746.84
1000
₹27.78
₹27782.17
