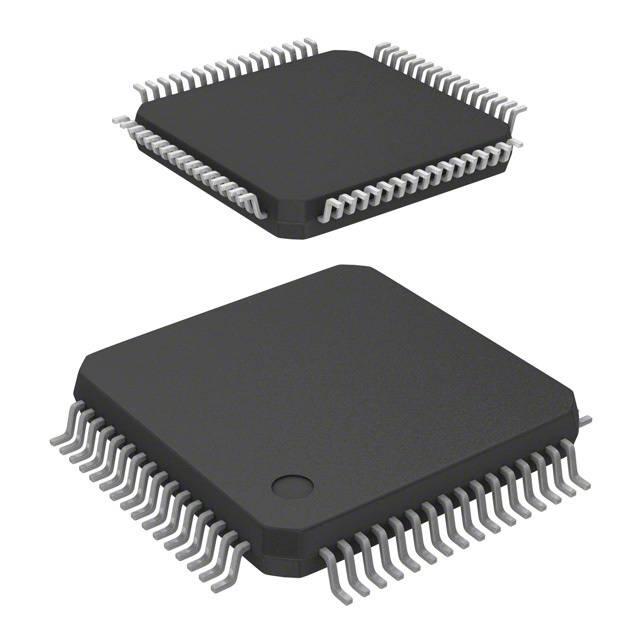

MC56F8257MLH
Manufacturer
NXP Semiconductors
Description
MCU 16-bit MC56F82xx 56800E CISC 64KB Flash 3.3V 64-Pin LQFP Tray
Datasheet
DownloadProduct Attributes
Type
Case/Package
Clock Rate
Core Architecture
Data Bus Width
Frequency
Halogen Free
Height - Seated (Max)
Interface
Lead Free
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Number of I/Os
Number of Pins
Number of Programmable I/O
Number of Terminals
Number of Timers/Counters
Operating Supply Voltage
Oscillator Type
Peripherals
Radiation Hardening
RAM Size
REACH SVHC
RoHS
Schedule B
Terminal Pitch
Watchdog Timer
Weight
Width
Description
LQFP
16 MHz
RISC
16 b
60 MHz
Halogen Free
1.6 mm
CAN, I2C, LIN, SCI, SMBus, SPI
Lead Free
10 mm
Production (Last Updated: 8 months ago)
60 MHz
125 °C
3.6 V
64 kB
FLASH
-40 °C
3 V
Surface Mount
54
64
54
64
2
3.3 V
Internal
I2C, LVD, POR, PWM, WDT
No
8 kB
Yes
Compliant
8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|8542310000|85
500 µm
Yes
346.544571 mg
10 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹1746.76
Total Price
₹1746.76
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1746.76
₹1746.76
10
₹1370.32
₹13703.21
25
₹1370.30
₹34257.59
50
₹1313.19
₹65659.50
