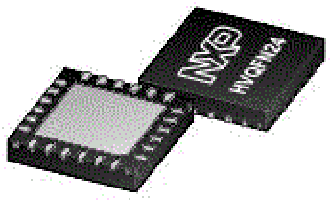

MC9S08QB8CGK
Manufacturer
NXP Semiconductors
Description
MCU 8-bit S08 S08 CISC 8KB Flash 2.5V/3.3V Automotive 24-Pin QFN Tray
Datasheet
DownloadProduct Attributes
Type
Case/Package
Clock Rate
Core Architecture
Data Bus Width
Frequency
Height - Seated (Max)
Interface
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Number of I/Os
Number of Pins
Number of Programmable I/O
Number of Terminals
Number of Timers/Counters
Operating Supply Voltage
Oscillator Type
Peripherals
Radiation Hardening
RAM Size
REACH SVHC
RoHS
Terminal Pitch
Watchdog Timer
Width
Description
QFN
16 MHz
S08
8 b
20 MHz
1.05 mm
I2C, LIN, SCI, SPI
5 mm
Production (Last Updated: 8 months ago)
20 MHz
85 °C
3.6 V
8 kB
FLASH
-40 °C
1.8 V
Surface Mount
20
24
22
24
1
3 V
External
LVD, PWM, WDT
No
512 B
Yes
Compliant
650 µm
Yes
5 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹338.79
Total Price
₹338.79
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹338.79
₹338.79
10
₹253.96
₹2539.55
25
₹232.76
₹5818.93
50
₹232.76
₹11637.85
100
₹212.67
₹21266.82
500
₹191.86
₹95932.23
1000
₹186.32
₹186323.86
